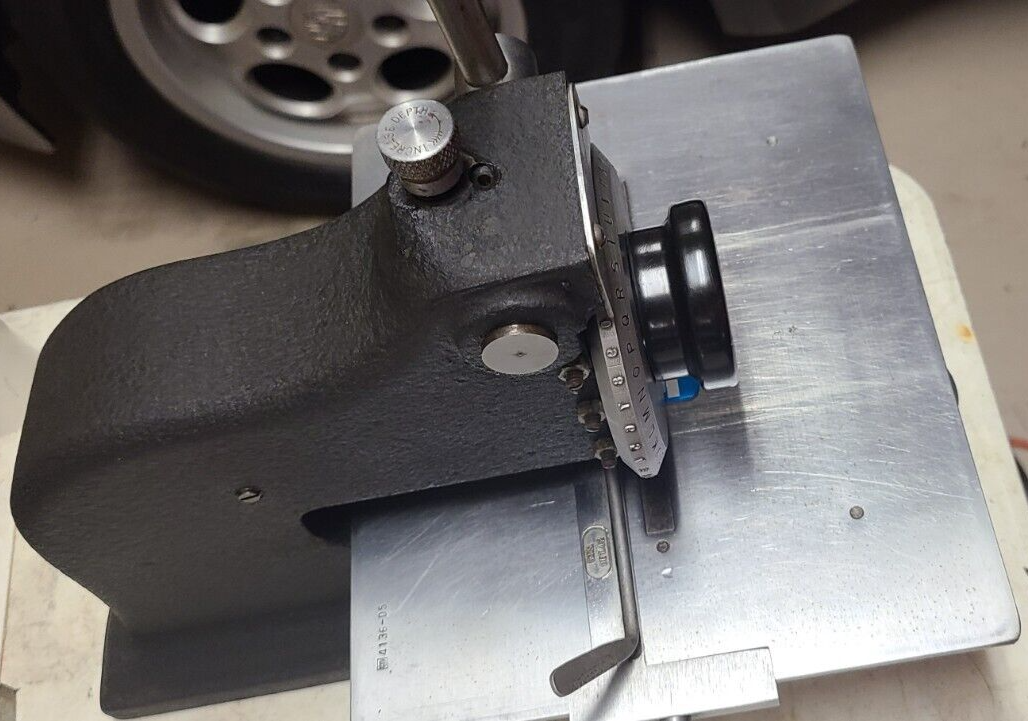

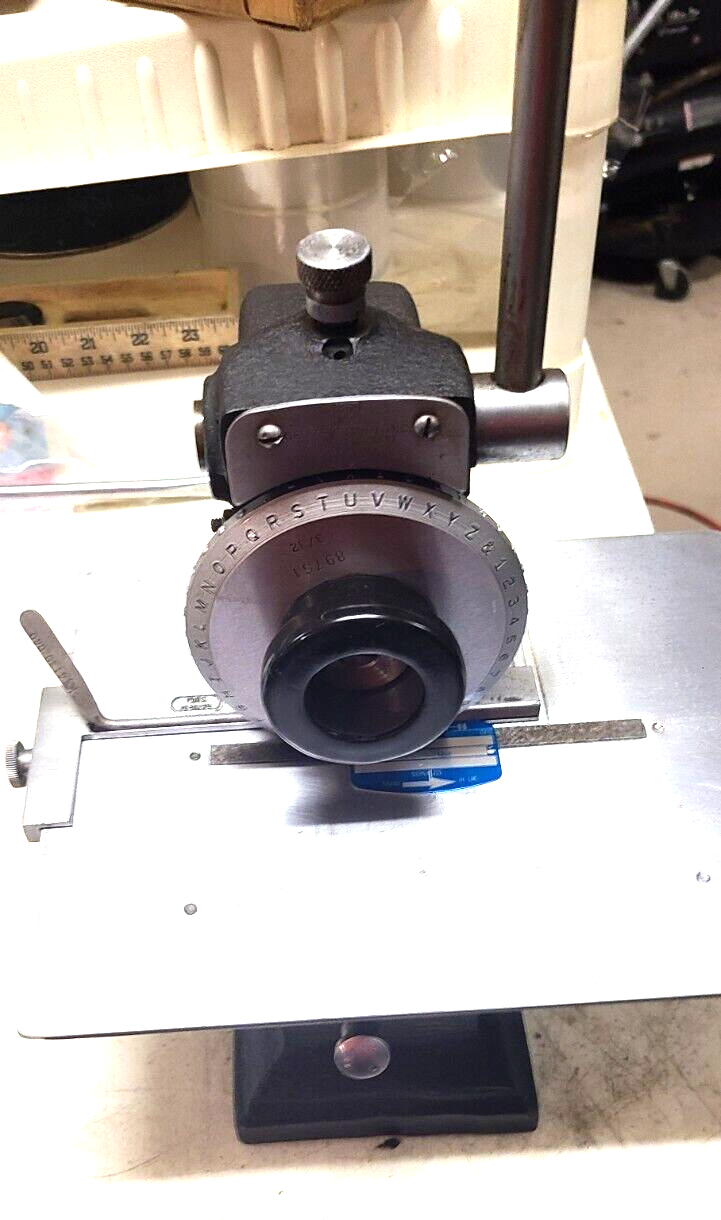

SCHMIDT MODEL 4 MANUAL NAMEPLATE MARKING PRESS WITH ADDITIONAL CHARACTER DIAL

GOOD USED CONDITION

This Model 4 press comes with a 1/8" Character Size Marking Dial. The manual Model 4 marking press is for marking on tags and nameplates up to 4 inches deep and 8 inches wide.

Can hold nameplate thickness of .012" to .093".

The Model 4 is our manual nameplate marking machine for stamping into name plates, metal tags, dog tags and ID tags. Model 4 accepts plates up to 4 inches deep.

Can hold nameplate thickness of .012" to .093".

NAMEPLATES: The Model 4 can be used to mark on all materials - steel, brass, stainless steel**, aluminum, and some plastic.

CHARACTER SPACING: Each letter or figure occupies a space as wide as it is high. Fractions (1/2, 1/4, etc.) are made with the characters in line - not above one another.

A fraction will occupy a space equal to letters or figures of the same character size. 1/2 will take up the same space as 123.

MODEL 4 MACHINE SPECS

Table Dimensions: 9-3/4 inches x 7-3/4 inches

Nameplate Sizes: up to 4 inches deep and 8 inches wide

Nameplate Thickness: .012 inch to .093 inch thick

Nameplate Hardness: maximum Rockwell of C59

Marking Limits: As low as 3-3/4 inch from top of nameplate

Net Weight: 28-1/2 lbs.

Shipping Weight: 32-1/2 lbs.
