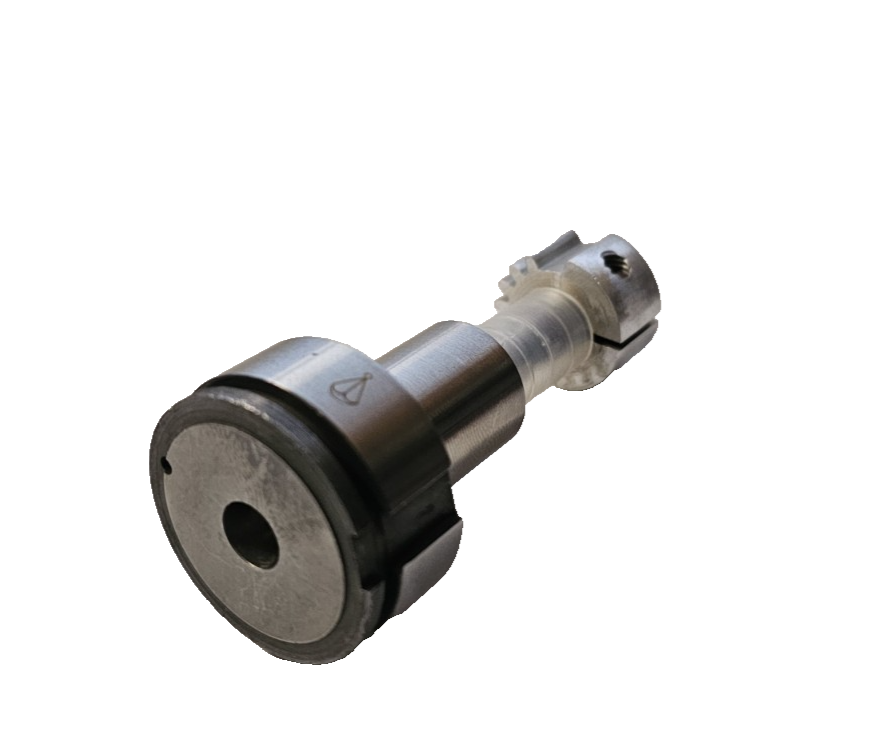

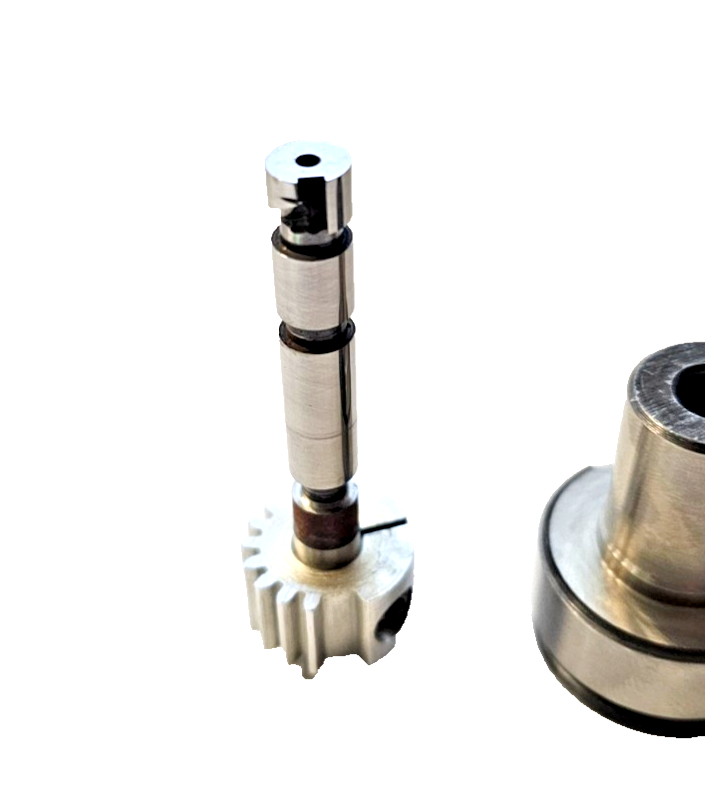

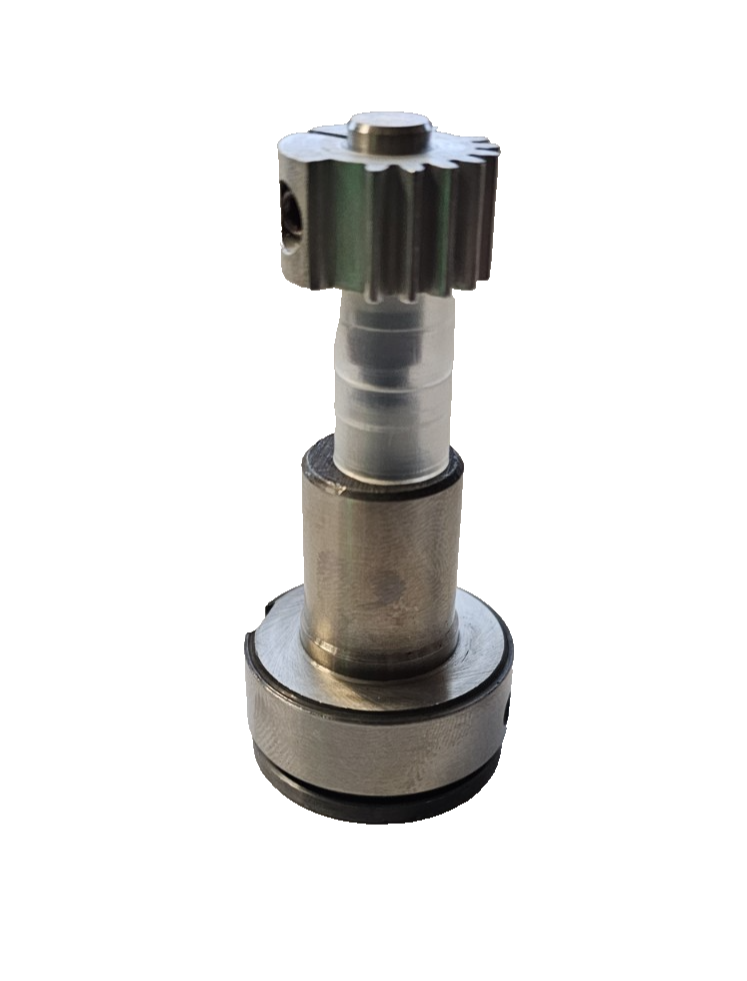

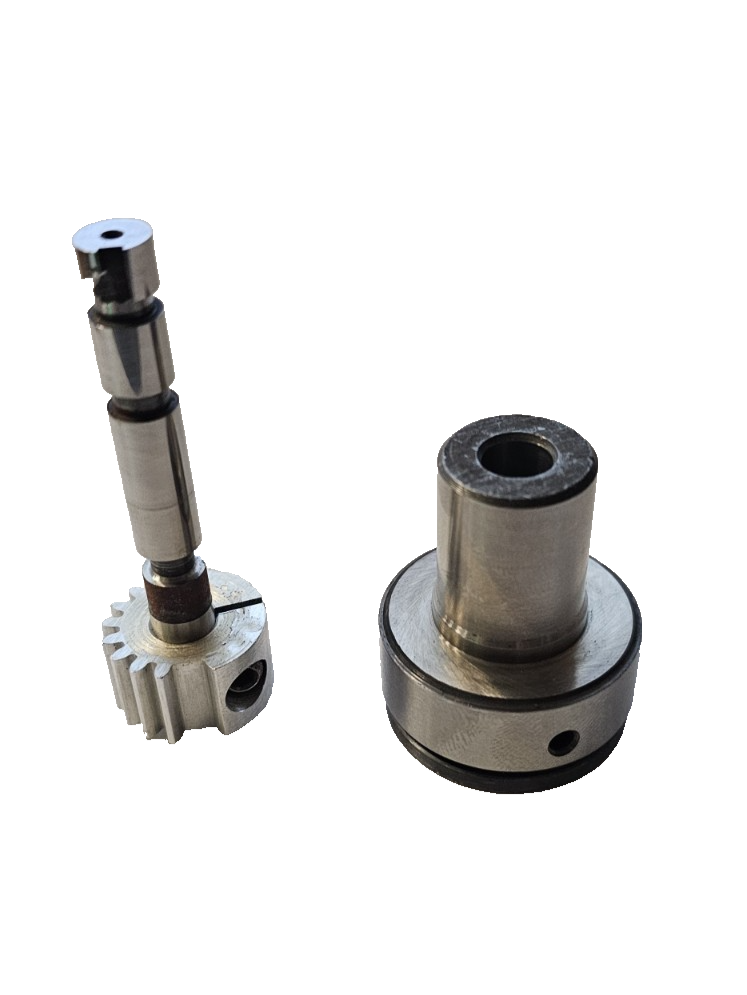

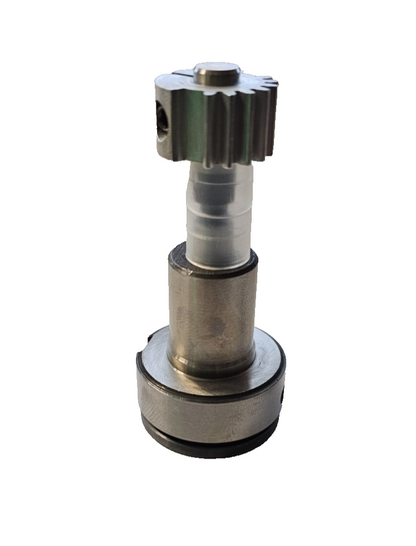

CATAPILLAR 9H5796 Barrel/Plunger Assy - Fits: 561-D320-D4D

CATAPILLAR 9H5796 Barrel/Plunger Assy - Fits: 561-D320-D4D

Regular price $83.33 USD
Regular price Sale price $83.33 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity
ALTAMONTE DIESEL Specialists
Located in Altamonte Springs Central Florida

ONE YEAR MANUFACTURERS WARRANTY ON THIS PRODUCT. WE ARE A DIESEL FUEL INJECTION FACILITY WITH 33 YEARS EXPERIENCE.



CATAPILLAR 9H5796 Barrel/Plunger Assy - Fits: 561-D320-D4D
AFTERMARKET O.M.A.P made in Italy.





1. Introduction: The Function and Context of the 9H5796 Assembly

The 9H5796 Barrel/Plunger Assembly is a highly specialized and critical component within the mechanical fuel injection system of legacy Caterpillar diesel engines. Its role is fundamental to the entire combustion process, serving as the core mechanism for generating the immense pressure required to deliver fuel precisely to the engine's combustion chambers. Within an in-line injection pump, a plunger is driven by a camshaft to reciprocate rapidly within a stationary barrel. 1  This motion, occurring within a meticulously engineered, precision-fit environment, compresses diesel fuel to a high pressure. This high-pressure fuel is then forced through a delivery valve and into the injector, where it is atomized into a fine spray. 2  The accuracy of this process—including the timing, pressure, and volume of the fuel delivered—directly determines an engine's horsepower, torque, efficiency, and overall performance.

Compatibility and Application

The 9H5796 assembly is an original equipment manufacturer (OEM) part designed for a specific range of legacy Caterpillar machinery and engines. These models, which include various industrial engines, tracked tractors, and motor graders, represent a specific era of heavy equipment that utilized robust mechanical fuel systems.

Machine Type Specific Model Engine Number
Industrial Engine D320A D320A
Tracked Bulldozer D4D D320
Motor Grader 12E, No. 12, No. 12 MTR D320A
Pipelayer 561B D320


Specification Measurement (Imperial) Measurement (Metric) Source(s)
Weight 0.35 - 0.4 lbs 0.19 kg
Length 3.14 in / 3.74 in 8.99 cm / 9.5 cm
Height 1.66 in / 1.77 in / 1.97 in 4.5 cm / 5 cm
Width 1.77 in / 1.97 in 4.5 cm / 5 cm
